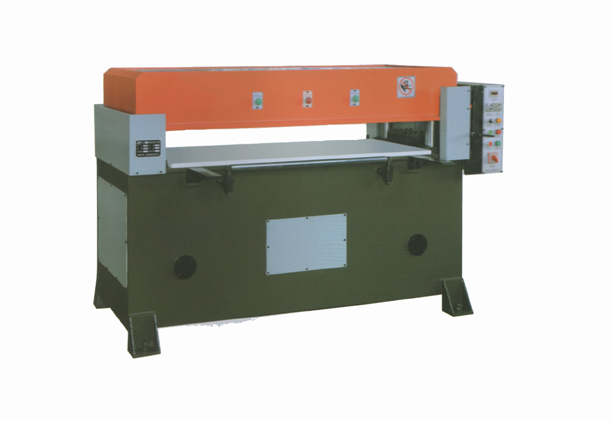

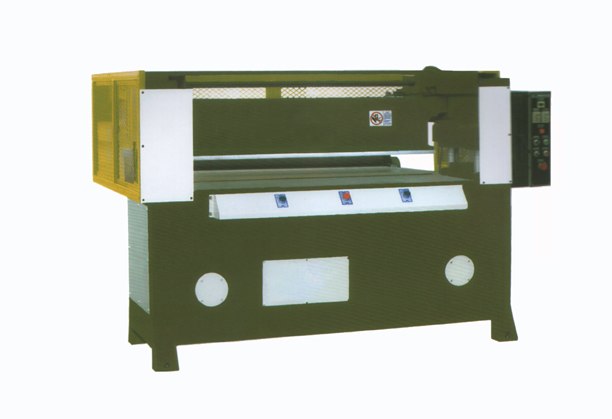

Hydraulic flat cutters
---Widely used for packings & printing/leather cutting/jigsaw puzzle producing/plastic sheets.
 |
Model number |
JHX-400 |
JHX-500 |
JHX-600 |
JHX-800 |
JHX-1000 |
JHX-1500 |
JHX-2000 |
Maximum cutting force |
400KN |
500KN |
600KN |
800KN |
1000KN |
1500KN |
2000KN |
Distance between
the upper platen
and the working
table surface |
50-200mm |
50-200mm |
50-200mm |
50-200mm |
50-200mm |
50-200mm |
50-200mm |
Cutting area |
1600*610mm
1250*610mm |
1600*810mm
1250*810mm |
1600*810mm
1250*810mm |
1600*810mm
1250*810mm |
1600*810mm
1250*810mm |
1600*810mm
1250*810mm |
1600*810mm
1250*810mm |
Main motor power |
3KW |
4KW |
5.5KW |
7.5KW |
7.5KW |
11KW |
11KW |
|
- The machine is applicable for whole-broken or semi-broken operation of various nonmetal slices materials by die cutter.
- For example: such industries as plastic packing, pearl cotton packaging, rubber and printing etc. Microcomputer controlled, with simple, prompt and accurate operation.
- The main machine adopts double oil cylinder, double-crank connecting rod balancing, four-column precise guiding mechanism,
- which can guarantee that the cutting depth at every cutting position is same. The pressing board carries out slow cutting when it presses downward to contact the die cutter, which can make that there is
- no size error between the uppermost layer and lowermost layer of cut materials. The central oil supply automatic lubricating system guarantees the service life and precision of machine.

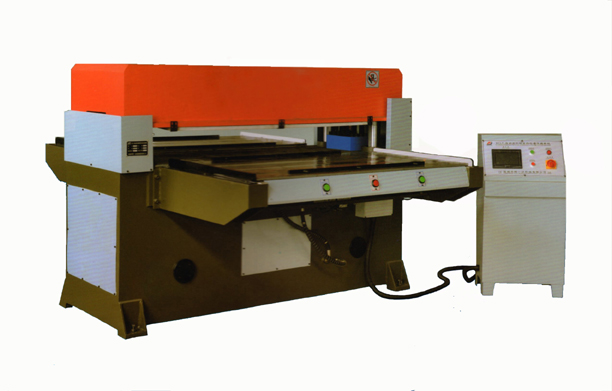

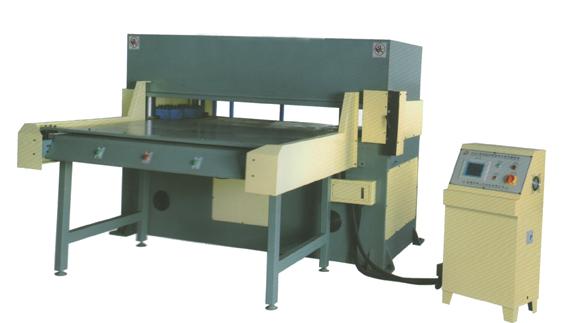

- Single-side or double-side automatic feeding system can be allocated to enhance the production efficiency of machine twice or three times.
- Cutting board micro-movement device can be allocated to evenly consume the cutting board and save cost.
- Die cutter pneumatic clamp device can be allocated to make the replacement of die cutter convenient and prompt. Optional:
- a. Single-side and double-side automatic feeding systems;
- b. Cutting board micro-movement device;
- c. Die cutter pneumatic clamp device.
|
|
